Tubular Knob Locks-HADES TECHNOLOGY

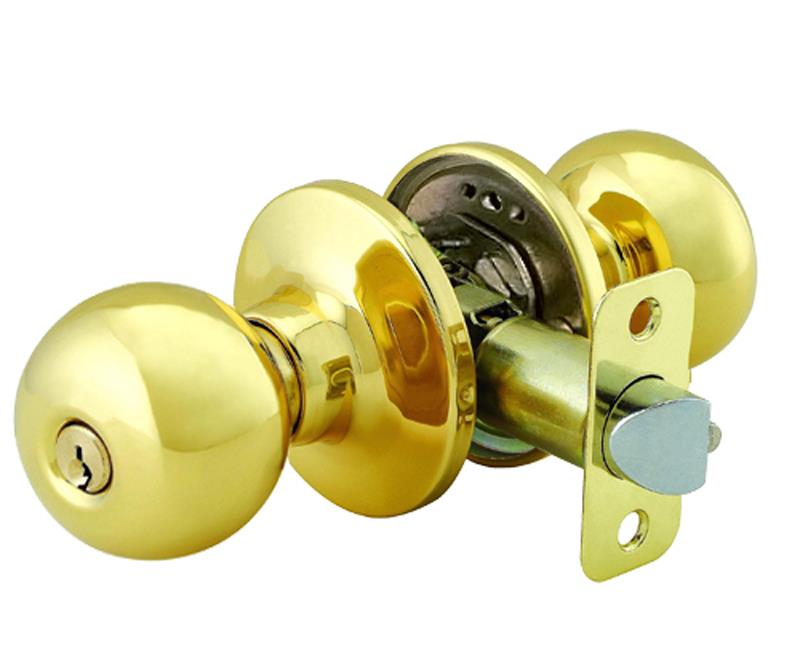

SE5871

Introduction:
* Tubular lockset is an economical and easy to install product
particularly adaptable for residential use.
* Guaranteed for over 100,000 life cycles.
* Can be keyed alike with deadbolts to improve security.
* Can be master keyed in a simple combination for family and facility use.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is made of either wrought stainless steel or brass.
* 1-piece reinforced knob as standard, esthetic 2-piece knob available upon request.
* 590H、607H are specially designed to suit the requirement of plastic steel door.
Features:
Latch Bolt
* Dead locking for keyed functions.
* Adjustable backset 2-3/8" or 2-3/4"(60mm/70mm) as standard.
* Adjustable 1" round drive-in 4-way latch is available upon request.
* 2-1/4"(57mm) curved lip strike as standard.
* 2-3/4"(70mm) strike available upon request.
Door Thickness
* Adjustable 1-3/8" to 1-3/4"(35mm to 45mm)as standard.
* 50mm(2") up to 70mm(2-3/4") for 590H and 607H.
Handing
* Fully reversible for left or right hand doors.

Product Detail


TUBULAR LEVERSET UNIT(MM)
MODEL/SIZE A B C D
SE5871 65 52 35-45 60(70)




* DoorThickness: 35mm-45mm(1 1/8"-2)

* Latch Backset: 60mm(2 3/8")&70mm(2 3/4")

*Rose Design: 65mm

* Key Design: Kwikset,C4,Computerized Key

*Cylinder Construction: Master Key,Construction Key


FUNCTION
DIAGRAM
FEATURE FEATURE
OUTSIDE BOLT LATCH INSIDE

Outside Inside
Entrance(ET)
Cylinder Dead Latch Button * Unlocked by key from outside when button locking.
* Unlocked by konb/lever form etther side when button unlocked.

Outside Inside
Privacy(BK)
Emergency
Keyway
Latch Button

* Unlocked by emergency key or shim form outside when button locking.
* Unlocked by knob.lever form etther side when button unlocked.


Outside Inside
Passage(PS)
Blank Latch Blank * Both knob/lever always unlocked.

Outside Inside
Storeroom(RS)
Cylinder Dead
Latch
Blank * Outside knob/lever always fixed.
* Unlocked by key form ouside.

FINISH DESCRIPTION

SATIN STAINLESS STEEL

POLISHED STAINLESS STEEL SATIN BRASS POLISHED BRASS
SS(US32D) PS(US26) SB(US4) PS(US3)

ANTIQUE COPPER ANTIQUE BRASS OIL BRONZE
AC(US11) AB(US5) US10B
