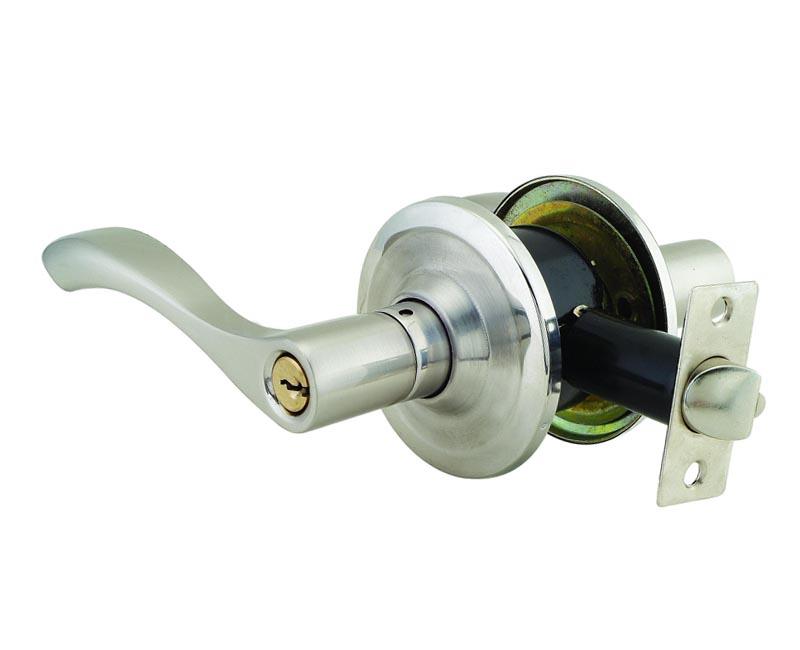

Cylindrical Lever Locks-HADES TECHNOLOGY

2683

Introduction
* Easy to install product particularly adaptable for residential use.
* Especially convenient for children and the handicapped.
* Can be keyed alike to deadbolts to maximize security.
* Guaranteed for over 100,000 life cycles.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is made of zinc die-casting electro-plated or solid brass.
* 5-pin tumbler cylinder, brass plug with 2 nickel-plated brass keys.
Features
Latch Bolt
* 1/2"(12mm) throw latch.
* Dead locking for keyed functions.
Door Thickness
* Adjustable 1-3/8" to 2"(35mm to 50mm).
Backset
* Standard 2-3/4"(70mm).
* 2-3/8"(60mm) and 3-9/16"(90mm) also available upon request .
Handing
* Fully reversible for left or right hand door.

Product Detail


TUBULAR LEVERSET UNIT(MM)
MODEL/SIZE A B C D
2683 75 120 35-45 60(70)




* DoorThickness: 35mm-45mm(1 1/8"-2)

* Latch Backset: 60mm(2 3/8")&70mm(2 3/4")

*Rose Design: 65mm

* Key Design: Kwikset,C4,Computerized Key

*Cylinder Construction: Master Key,Construction Key


FUNCTION
DIAGRAM
FEATURE FEATURE
OUTSIDE BOLT LATCH INSIDE

Outside Inside
Entrance(ET)
Cylinder Dead Latch Button

* Unlocked by key from outside when button locking.
* Unlocked by konb/lever form etther side when button unlocked.

* Inside knob/lever always unlocked.

Outside Inside
Privacy(BK)
Emergency
Keyway
Latch Button

* Unlocked by emergency key or shim form outside when button locking.
* Unlocked by knob.lever form etther side when button unlocked.

Inside knob/lever always unlocked.

Outside Inside
Passage(PS)
Blank Latch Blank * Both knob/lever always unlocked.

Outside Inside
Storeroom(RS)
Cylinder Dead
Latch
Blank

* Outside knob/lever always fixed.
* Unlocked by key form ouside.

*Inside knob.lever always unlocked.

FINISH DESCRIPTION





SATIN NICKEL

BRIGHT CHROME SATIN BRASS POLISHED BRASS
SN(US32D) PS(US26) SB(US4) PS(US3)

ANTIQUE COPPER ANTIQUE BRASS OIL BRONZE
AC(US11) AB(US5) US10B
