3800 PUSH-PULL LOCK

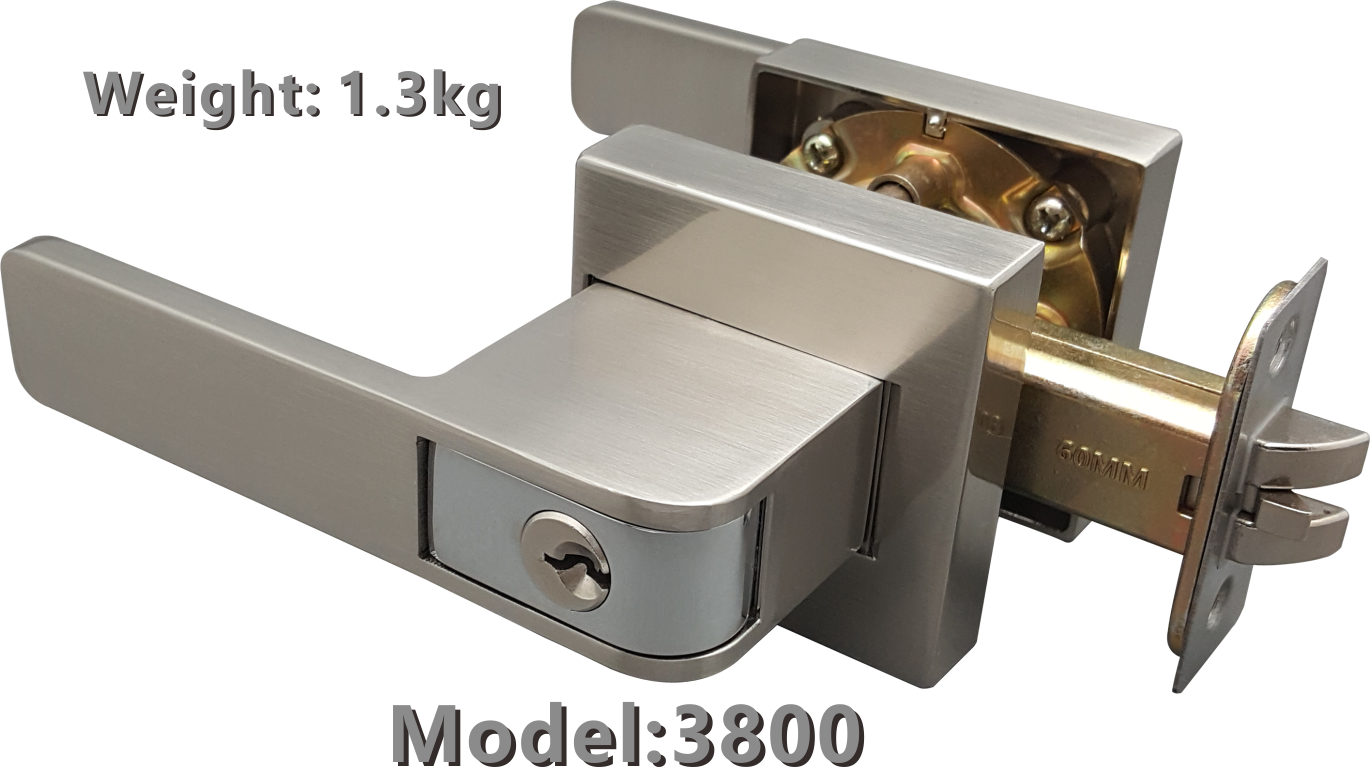

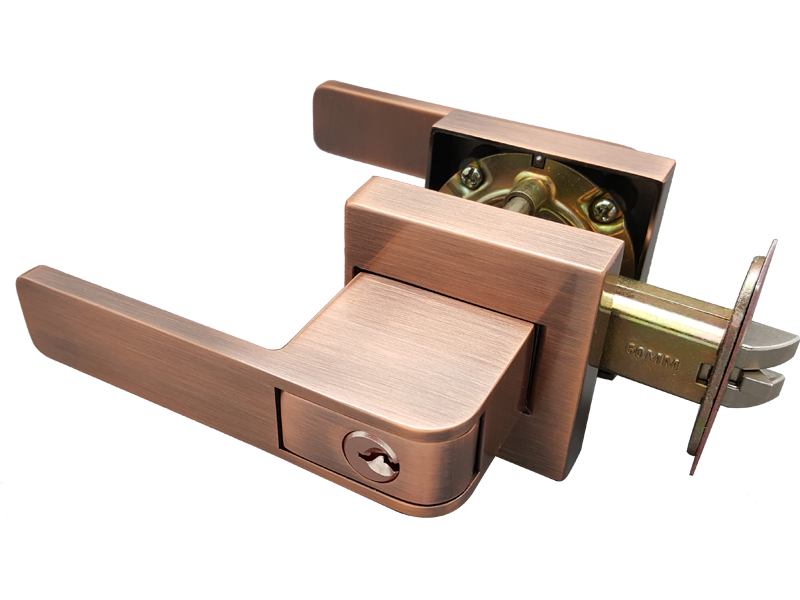

push-pull tubular lever door lock (tubular lock) Introduction:
* Tubular lever lock is an economical and easy to install product particularly adaptable for residential use.
* Guaranteed for over 250,000 life cycles.

*On the outside, push the outside-lever to open the door lock, in the inside, pull the inside-lever to open the door lock.
* Can be keyed alike with deadbolts to improve security.
* Can be master keyed in a simple combination for family and facility use.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is made of zinc die-casting electro-plated or solid brass.
* 1-piece reinforced knob as standard, esthetic 2-piece knob available upon request.
Features:
Latch Bolt
* Dead locking for keyed functions.
* Backset 2-3/8" or 2-3/4"(60mm/70mm) as standard.
* Adjustable 1" round drive-in 4-way latch is available upon request.
* 2-1/4"(57mm) curved lip strike as standard.
* 2-3/4"(70mm) strike available upon request.
Handing
* Fully reversible for left or right hand doors.

Product Detail


INNOVATIVE  PRODUCT  INTRODUCTION

                                      PUSH-PULL  TUBULAR  LEVER  LOCK

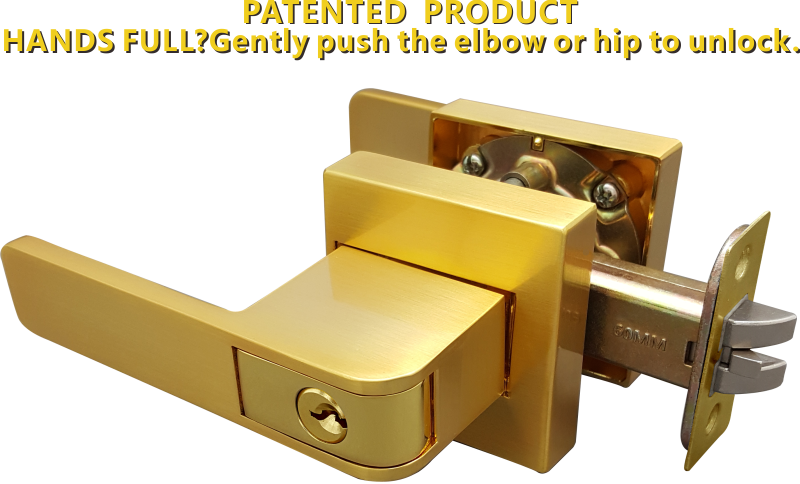

Hades's Push-Pull Levers are the easiest, most comfortable way to open a door.
With just one finger, an elbow, or your hip, you can simply push or pull your way
through a door. Great if you have your hands full or free!

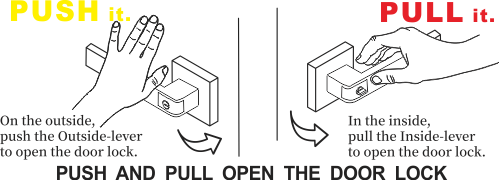

PUSH AND PULL OPEN THE DOOR LOCK

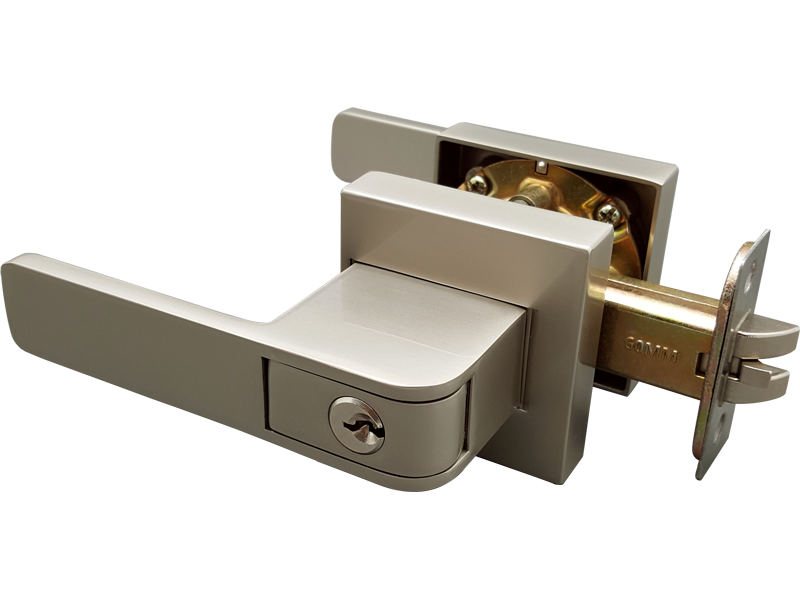

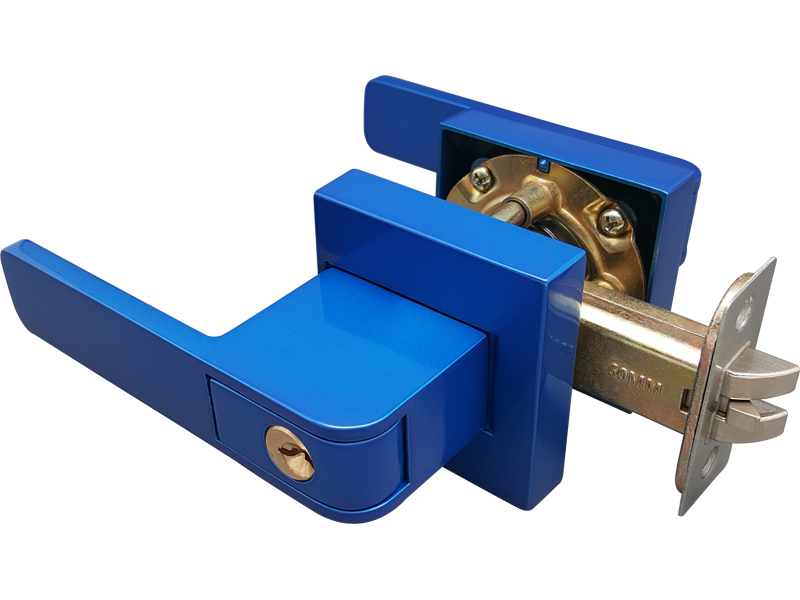

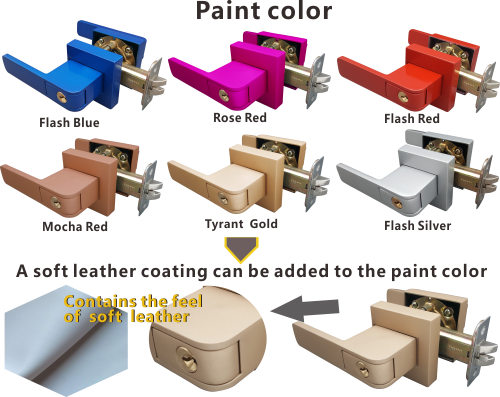

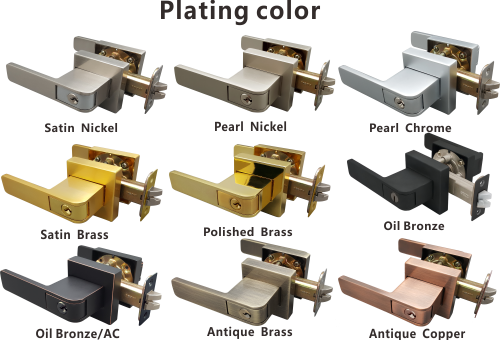

FINISH DESCRIPTION










                            Exclusive patented product

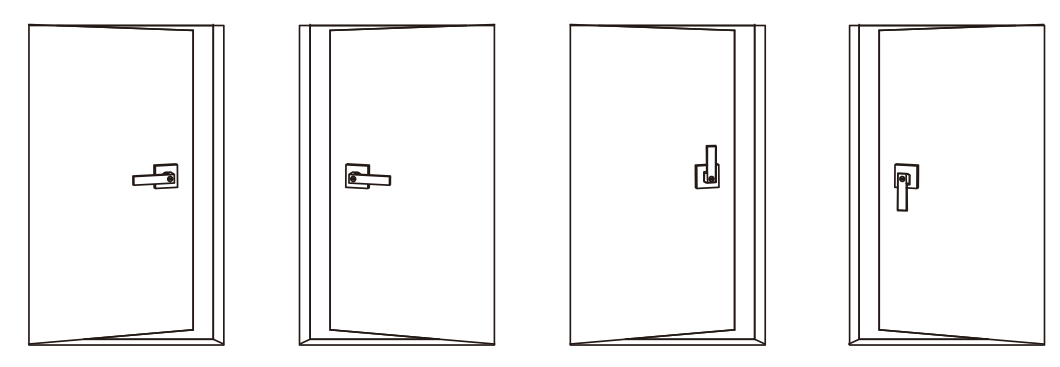

ARBITRARY INSTALLATION OF YOUR MOST SUITABLE

 ARBITRARY  INSTALLATION  OF  YOUR  MOST  SUITABLE

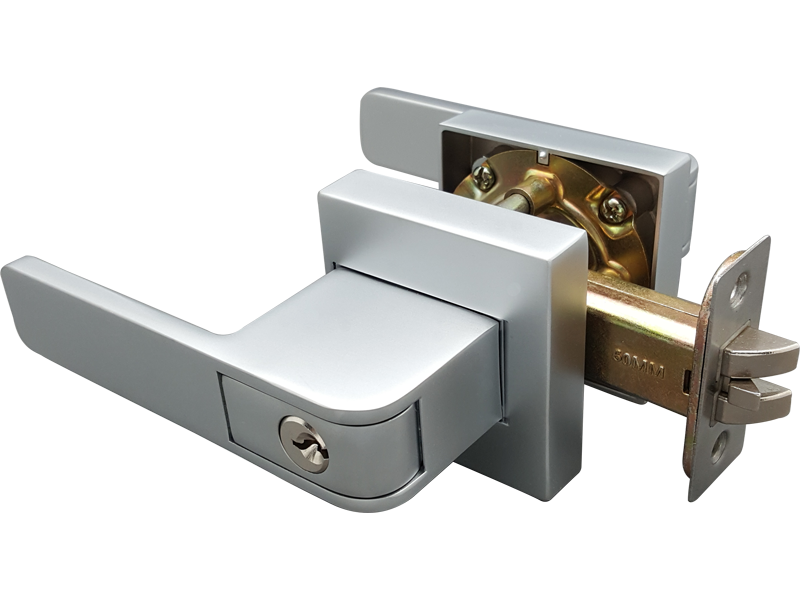

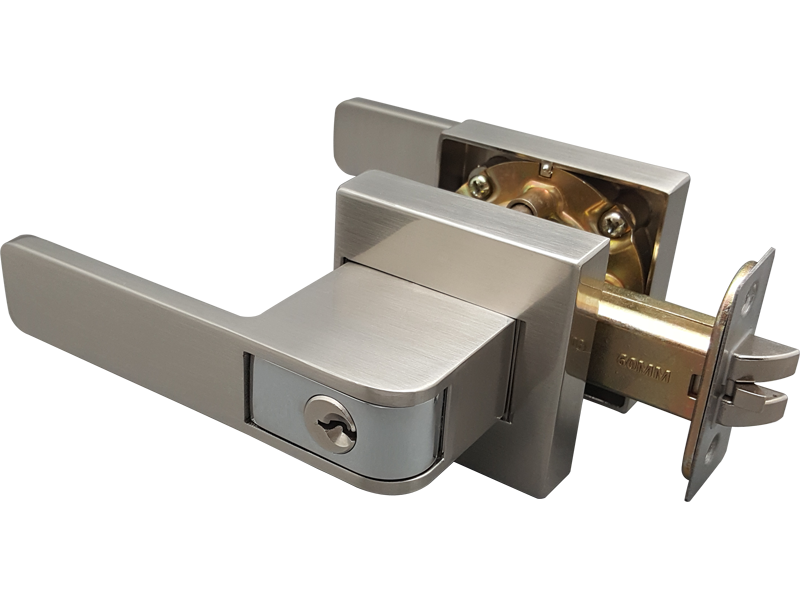

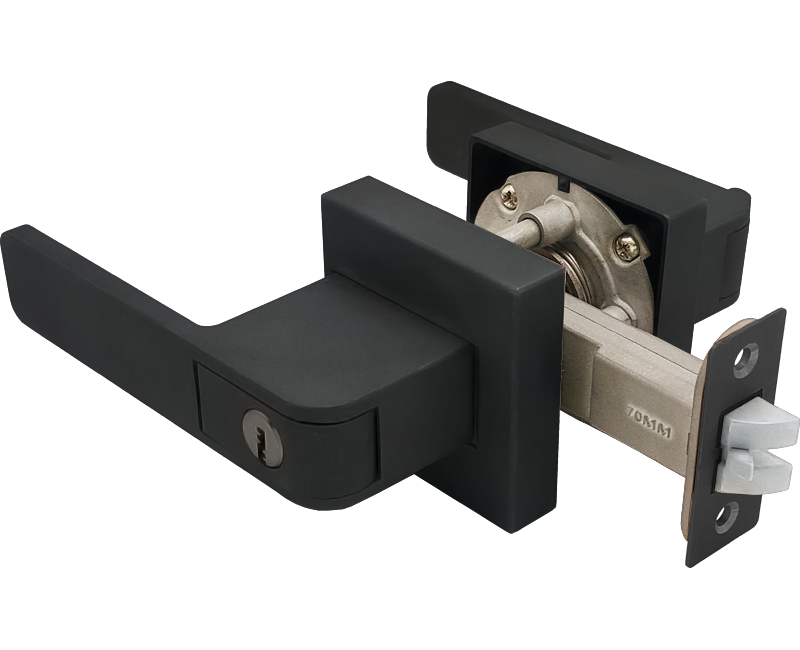

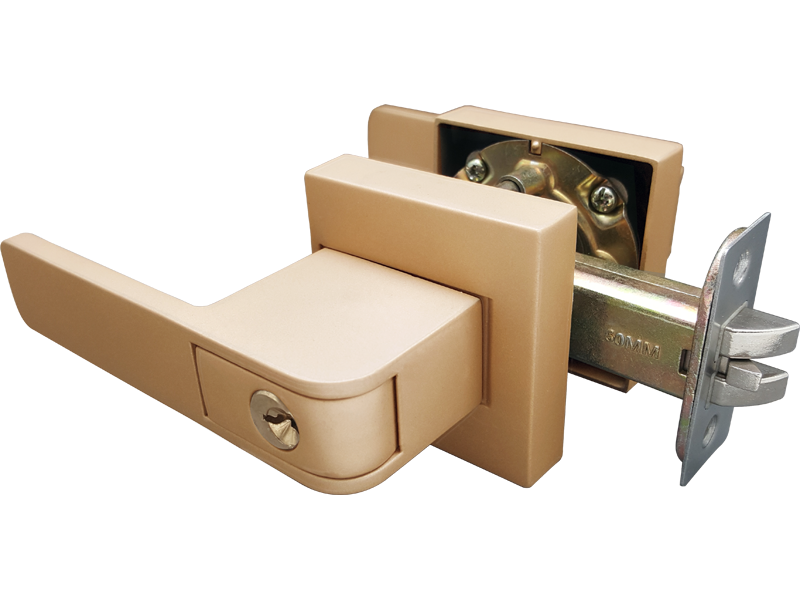

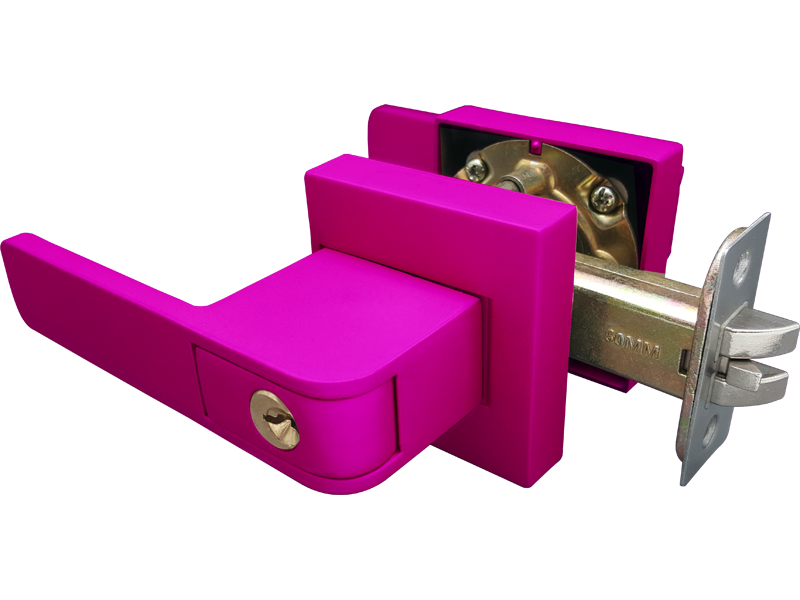

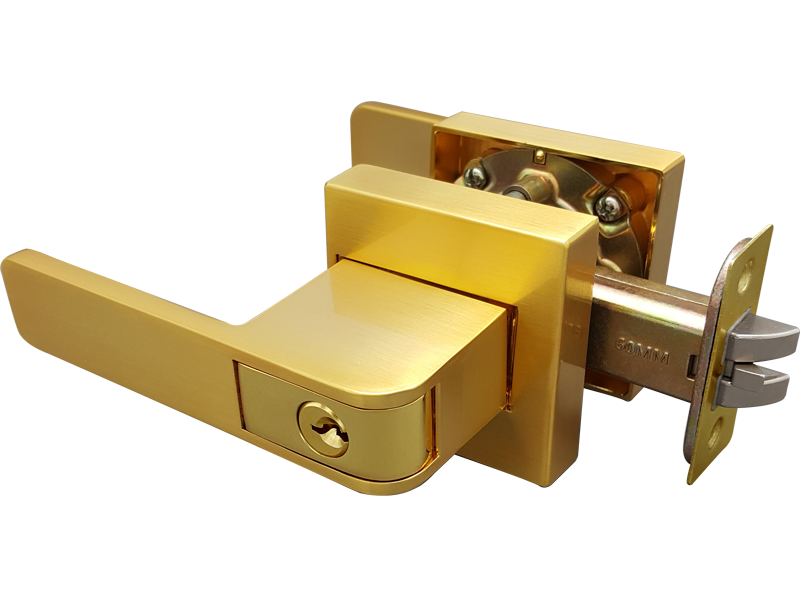

push-pull tubular lever door lock   push-pull tubular lever lock

lever handle door lock UNIT(MM)

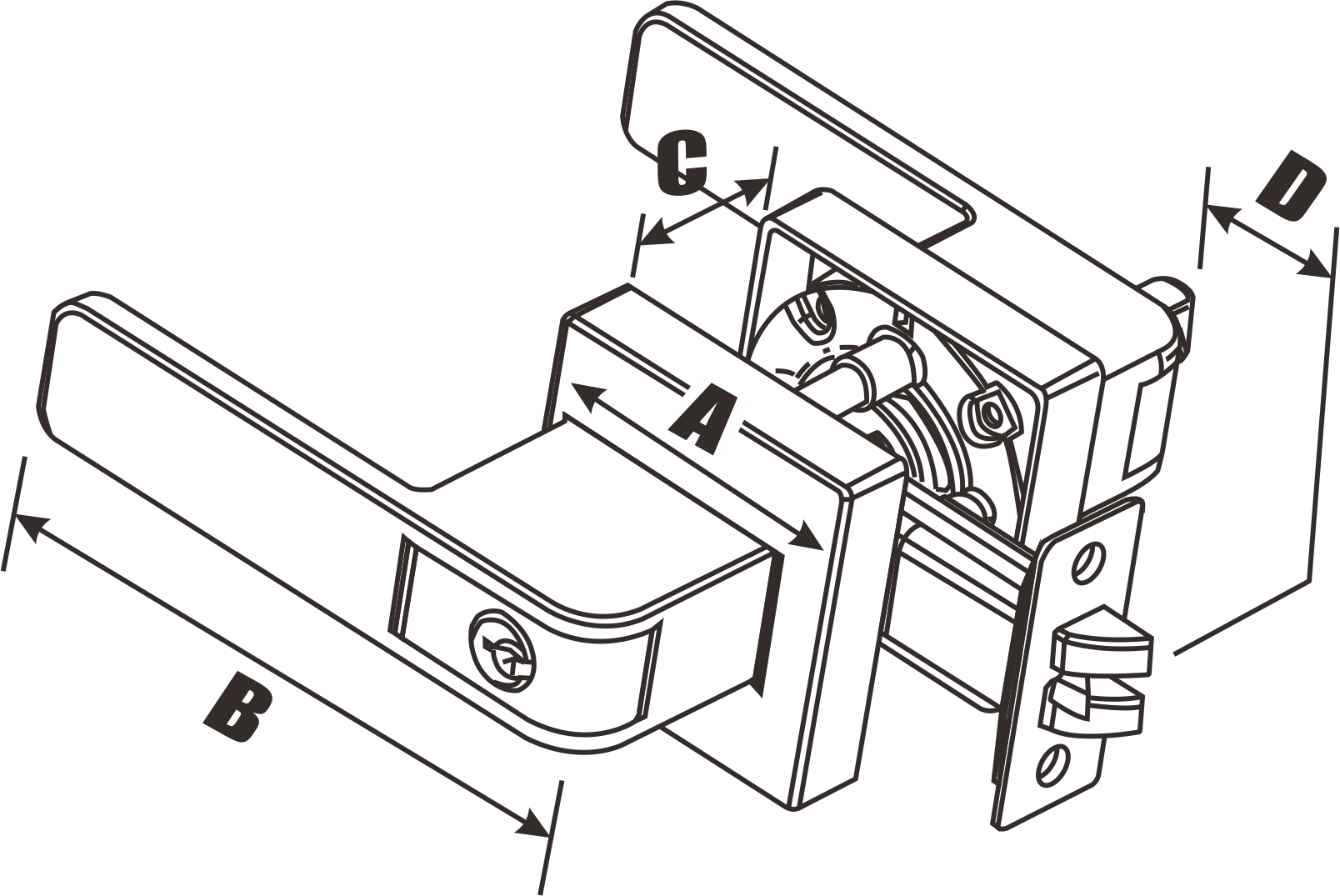

MODEL/SIZE A B C D
3800 65 125 35-45 60(70)




lever door lock


*DoorThickness: 35mm-45mm(1 1/8"-2)

*Latch Backset: 60mm(2 3/8")&70mm(2 3/4")

*Rose Design: 65mm

*Key Design: Kwikset,C4,Computerized Key

*Cylinder Construction: Master Key,Construction Key


FUNCTION
DIAGRAM
FEATURE FEATURE
OUTSIDE BOLT LATCH INSIDE

Outside Inside
Entrance(ET)
Cylinder Dead Latch Button

* Pushing/Turning button in inside lever locked internal.(automatically releases when inside lever is pull or key is rotated in locked outside lever.)

*Latchbolt is operated by in push outside lever or pull inside lever. (except when outside lever is locked from inside.)

*When the internal locked, the outside lever to push the idle state.

*Inside lever always active.


Outside Inside
Privacy(BK)
Emergency
Keyway
Latch Button

* Unlocked by emergency key or shim form outside when button locking.
* Unlocked by knob.lever form etther side when button unlocked.


Outside Inside
Passage(PS)
Blank Latch Blank * Both knob/lever always unlocked.

Outside Inside
Storeroom(RS)
Cylinder Dead
Latch
Blank * Outside knob/lever always fixed.
* Unlocked by key form ouside.
